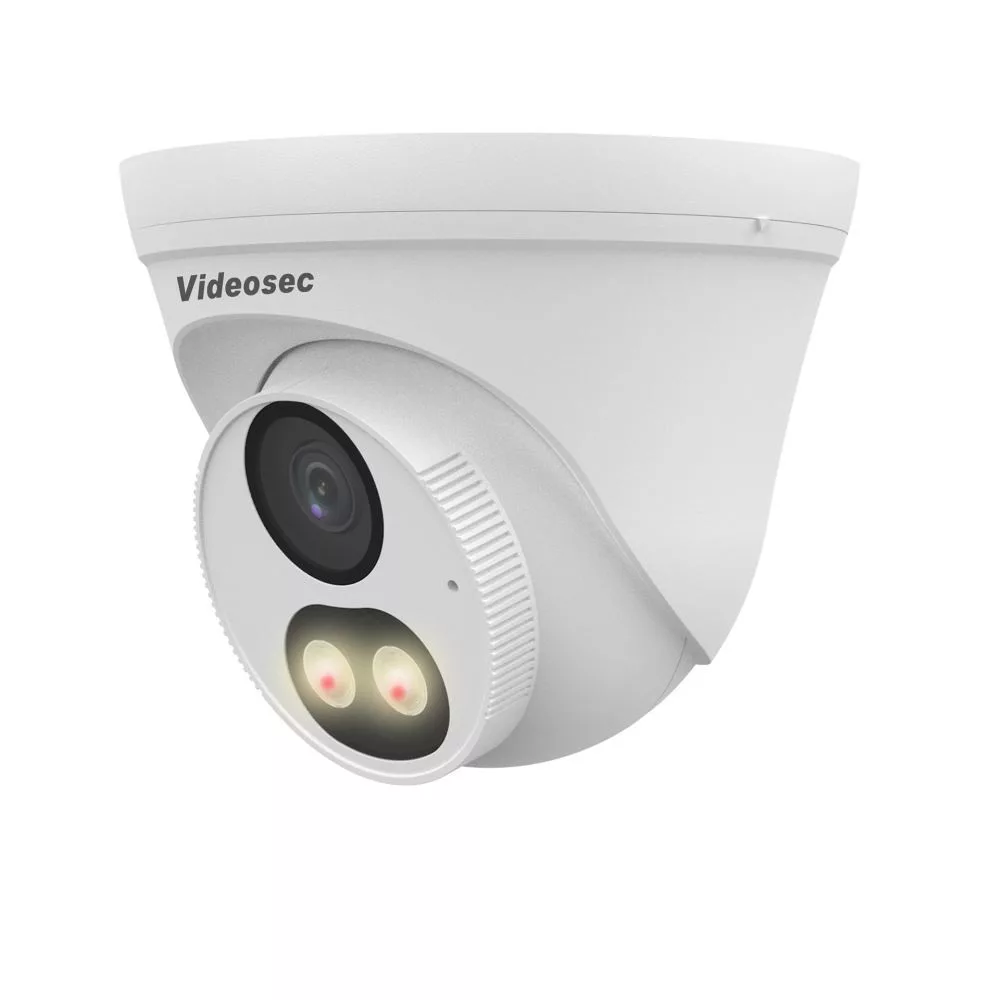

Videosec XD-500DL-28F HD-Analog Dome Camera
Videosec XD-500DL-28F HD-Analog Dome Camera
Net Price: 32.59 €
  1. Analog Cameras
  1. CCTV Cameras
  2. Analog Cameras

Videosec XD-500DL-28F HD-Analog Dome Camera

SKU:
VCHD-F521D
Register to see the prices and offers tailored for you in our webshop!
Videosec XD-500DL-28F HD-Analog Dome Camera
In stock
Net Price: 32.59 €
MODEL: XD-500DL-28F
• 5MP CCTV Camera with Hybrid Light
• 1/2.7" CMOS, Sensitivity: 0.005lux
• Fixed lens: 2.8mm/F1.4 H:110°
• 4in1 Multi Analog System AHD/ CVI/TVI/CVBS
• Signal & menu settings via DVR Coaxial Control
• Multi-Res. 5M: 2880x1620, 4M: 2560x1440 , 1080p..
• IR/White LED light, Up to 40m, 2D-DNR, D-WDR, with Microphone
• Weather Proof, Metal and Plastic Case IP-67
• Power: 12VDC-200mA
• Size: Ø117.8x96.5mm, Weight: 239g
Quantity discount:
4  pcs.
5
30.96 €/pcs.
pcs.
Bundle Offers
  • Specifications
  • Download
  • Related products
  • Accessories
Specifications
Model No.:
XD-500DL-28F
Resolution (MP):
5 MP
Camera Housing Type:
Dóm/Turret dome
Light Sensitivity:
0.005 lux
Video Signal:
TVI CVI AHD CVBS
Aspect Ratio:
16:9
Frame Rate:
12.5fps/20fps @ 5MP, 25fps/30fps @ 4Mp/1080p
OSD Control:
Control Over Coax from XVR
Optics Type:
Fix/Fixed
Focus Distance:
2.8 mm
Aperture:
f/1.6
Horizontal Viewing Angle:
110°
WDR:
DWDR
Illumination:
hybrid Fehér/White+IR LED
Auto Switch:
IR-Fehér kapcsolás riasztásra (XVR-rel)/IR-wLED switching on alarm (XVR detection)
IR Distance (m):
40 m
White Light Distance (m):
40 m
Output signal:
CVBS, AHD, CVI, TVI
Control Interface:
BNC
Built-in microphone:
Beépített/Built in
Power Supply:
DC plug
Max. Power Recording:
3.5W
Power Supply:
12VDC
Energy Consumption:
3.5W
IP Protection:
IP67
Certificates:
CE
Warranty:
2 Years
Product Size:
118x118x97mm
Product Weight:
0.239 kg
Materials:
Aluminium
Box Size:
12x13.5x13.5cm
pcs/Package:
1
Package Net Weight:
0.27485 kg
Package Gross Weight:
0.302335 kg
Package Volume:
0.002187 m3
pcs/Shipping Box:
20
Package EAN Code:
EAN0000171
HS Code:
85 258 900
Origin:
Kína/China
Felbontás:
5 MP
Download
↓ Adatlap ↓
PDF
↓ Datasheet ↓
PDF
Related products

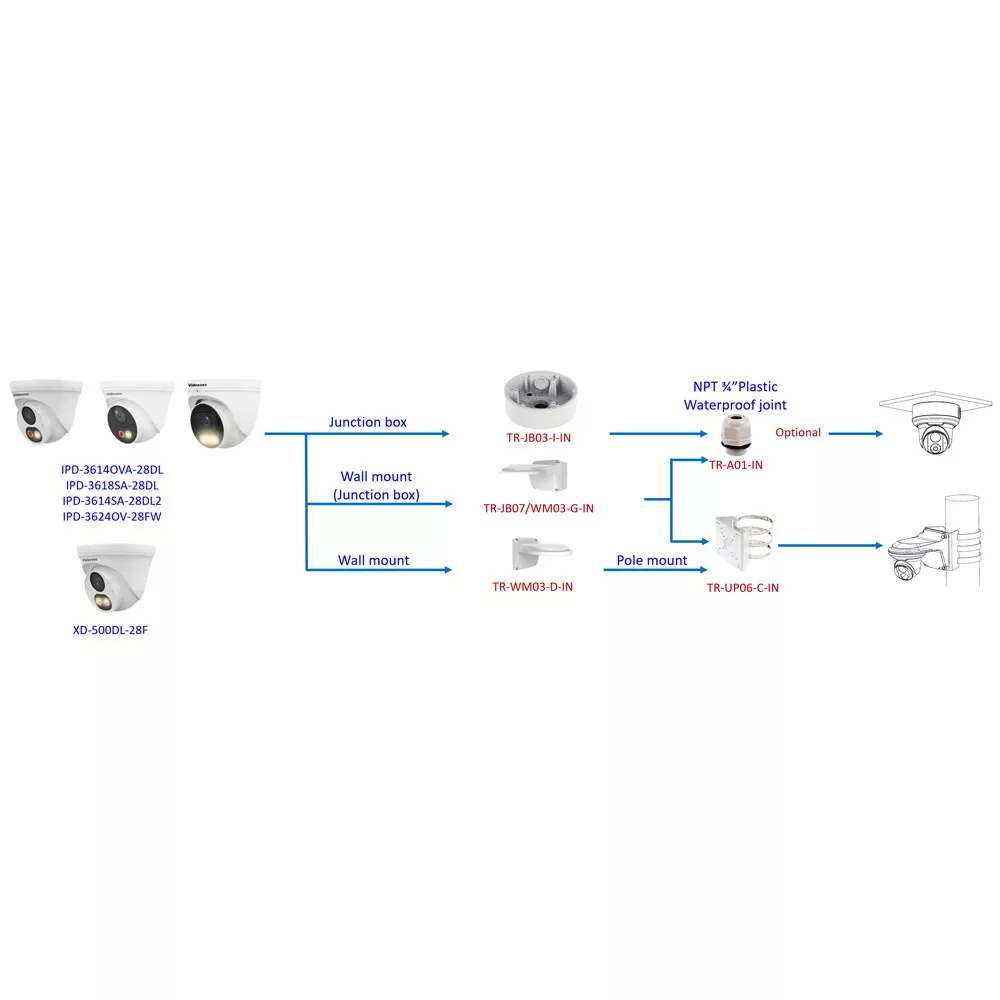

Accessories
