Videosec PTZ-6424IQ-X25S IP PTZ Camera 4MP 52.2°-2.74° IR LED LAN+PoE
SKU:
VCIP-Z480P
Register to see the prices and offers tailored for you in our webshop!
Out of stock
Net Price: 456.67 €
MODEL: PTZ-6424IQ-X25S
• 4MP ONVIF, PTZ, StarLight, 0.003 Lux,
• 1/2.8" CMOS Image Sensor, max. 2688×1520
• 2688x1520: 30fps, Ultra 265/H.264/MJPEG,
• 120dB WDR, 2DNR, Colour: 0.003 Lux, 0 Lux with IR, 100m IR
• Line crossing / Intrusion detect, Entrance/Exit
• Face capture; People Counting
• Pan: 0.1°/s - 200°/s, Pres: 240°/s,Tilt: 0.1° -120°/s
• Network: 1xRJ45 10M/100M Base-TX Ethernet
• Two-way audio, Alarm I/O: 2/1, 1024 preset
• Power: 12V DC ±25%, PoE+ (802.3at), max. 21W
• Environment -40°C~+70°C, IP67, IK10

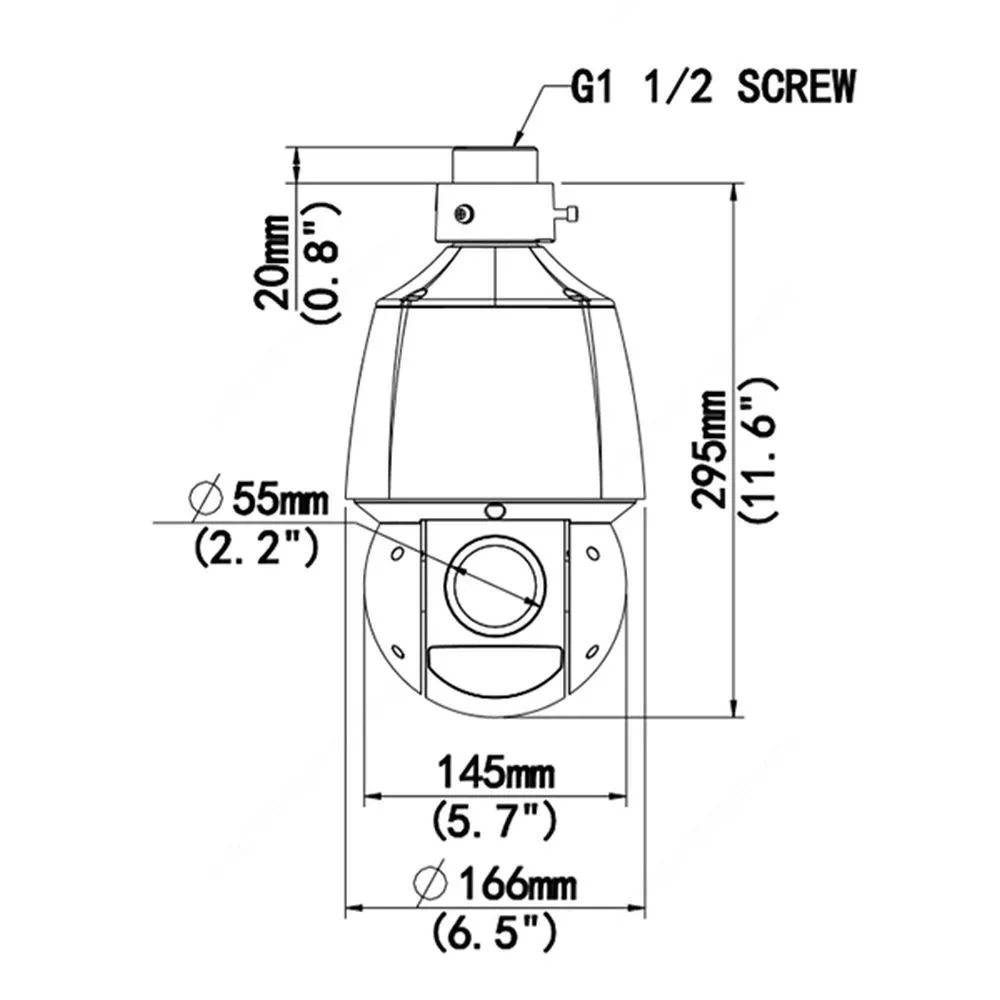

• Size: Ø166x295 mm, 3.05Kg, 6 KV surge

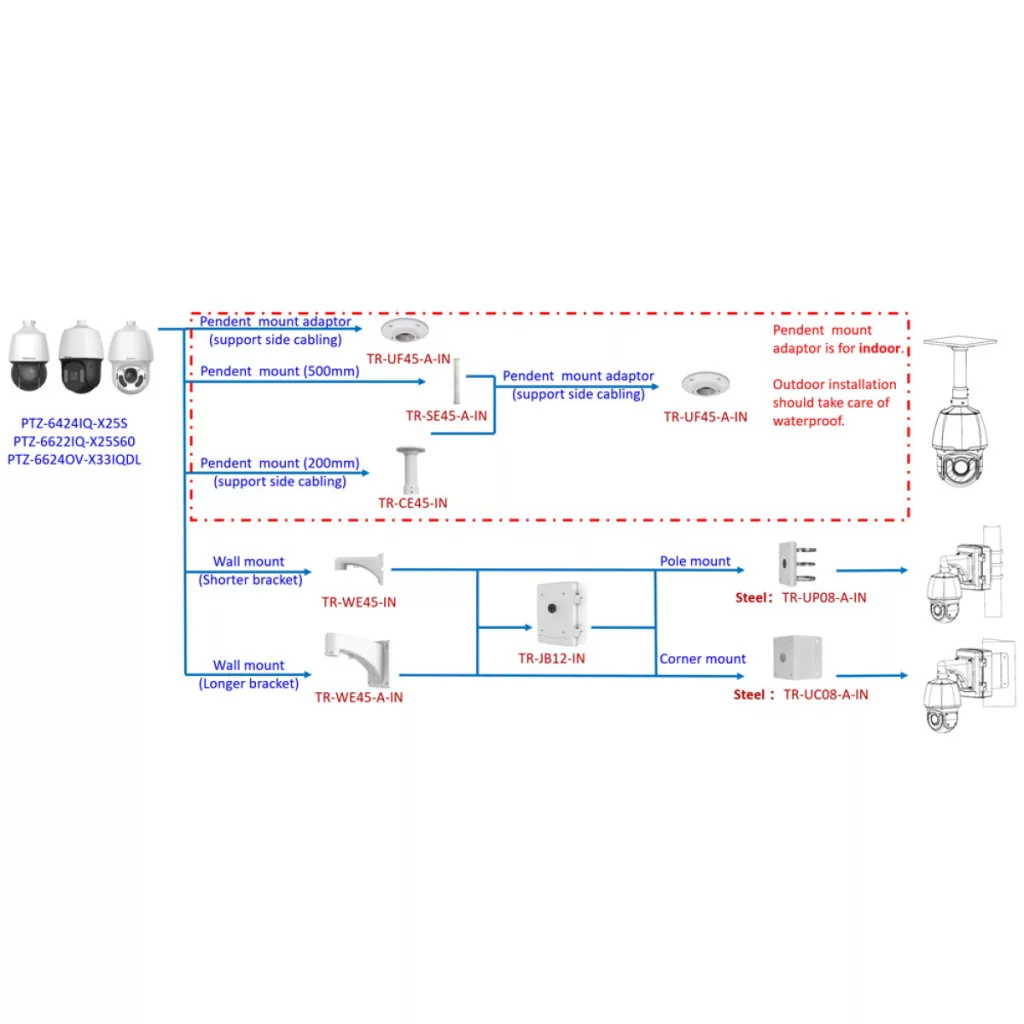

• TR-WE45-IN Wall Mounting Bracket, Included
• 4MP ONVIF, PTZ, StarLight, 0.003 Lux,
• 1/2.8" CMOS Image Sensor, max. 2688×1520
• 2688x1520: 30fps, Ultra 265/H.264/MJPEG,
• 120dB WDR, 2DNR, Colour: 0.003 Lux, 0 Lux with IR, 100m IR
• Line crossing / Intrusion detect, Entrance/Exit
• Face capture; People Counting
• Pan: 0.1°/s - 200°/s, Pres: 240°/s,Tilt: 0.1° -120°/s
• Network: 1xRJ45 10M/100M Base-TX Ethernet
• Two-way audio, Alarm I/O: 2/1, 1024 preset
• Power: 12V DC ±25%, PoE+ (802.3at), max. 21W
• Environment -40°C~+70°C, IP67, IK10
• Size: Ø166x295 mm, 3.05Kg, 6 KV surge
• TR-WE45-IN Wall Mounting Bracket, Included
Out of stock
Bundle offers
Model No.:
PTZ-6424IQ-X25S
Felbontás:
4 MP
Camera Housing Type:
PTZ
Junction Box:
TR-JB12-IN
Camera Console:
attached wall bracket
Image Sensor:
1/2.8" CMOS
Light Sensitivity:
0.003 lux
Video Signal:
CVBS
Supported Resolution:
2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360
Aspect Ratio:
16:9
Video Compression:
H.265, H.264, Smart Encoding: Basic, Smart Encoding: Advanced, MJPEG
Video Stream:
3
Frame Rate:
25/30 fps, min. 1 fps
Optics Type:
Motoros varifokális/Motorized varifocal
Focus Distance:
4.8 - 120 mm
Aperture:
f/1.5-3.8
Horizontal Viewing Angle:
52.2°-2.74°
Zoom Range:
25
WDR:
WDR 120dB
Illumination:
IR LED
Auto Switch:
Auto WDR
IR Distance (m):
100 m
OSD Field Number:
8
Privacy Mask:
24 (3D) zóna/zones
Corridor Mode:
Nem támogatott/Not supported
IQ Image Analytics:
Advanced IQ analytics based on human, bicycle and vehicle recognition
IQ Alarm:
Intrusion detection, Line crossing detection, Entering area, Leaving area, Auto tracking, Face detection, People flow counting, Crowd density monitoring, Sound event
IQ Level:
IQ
LAN Connection:
LAN+PoE
Network protocol:
Private, ONVIF, RTSP
User groups:
2
Number of users:
32
ONVIF Profile:
Profile S, Profile G, Profile T
Output:
1x NO/NC relay
Mobile App:
Videosec Control Panel, Videosec Control Panel Pro
PTZ Range:
360°/-15-90°
Pan Speed:
0.1°/s - 200°/s
Tilting Speed:
0.1°/s - 120°/s
Preset Speed:
240°/s
Patrol:
1 024
Auto Tracking:
Igen/Yes
Home Position:
Igen/Yes
Local Storage:
MicroSD
Max. Micro SD Card Size:
256GB
Auto Network Recovery:
Igen/Yes
Audio input:
1
Audio output:
1
Alarm input:
2x Riasztási be/Alarm IN
RS-485:
RS-485
Power Supply:
PoE 802.3at, 12V DC
Max. Power Recording:
21W
Surge Protection:
6kV
Power Supply:
12VDC/PoE
Power:
21W
IP Protection:
IP67
Certificates:
CE
Warranty:
3 Years
Product Size:
166x166x295mm
Product netto Weight:
3.05 kg
Materials:
Aluminium
Box Size:
19.7x19.7x41.1cm
pcs/Package:
1
Package Volume:
0.015950499 m3
pcs/Shipping Box:
4
Package EAN Code:
EAN0000089
HS Code:
85 258 900
Origin:
Kína/China
Weight:
4.86 kg/pcs.
