Videosec PTZ-6325IQ-X5SWAL IP PTZ Camera 5MP 30.6°-106.9° hybrid Fehér/White+IR LED LAN+PoE

Net Price: 226.43 €

Videosec PTZ-6325IQ-X5SWAL IP PTZ Camera 5MP 30.6°-106.9° hybrid Fehér/White+IR LED LAN+PoE

In stock

Net Price: 226.43 €

MODEL: PTZ-6325IQ-X5SWAL
• 5MP, 1/2.7" CMOS, PTZ Starlight, 0.005 lux
• Motorized Lens:2.7~12mm/F1.2, View (H): 30.6°-106.9°
• Dual light, 50m/15m auto switching IR to wLED
• 2880x1620: max. 30fps, Ultra 265, H.264, MJPEG, ONVIF
• 120dB WDR, IQ Motion Detection
• Smart intrusion, Human Body, Vehicle detect.., Auto Tracking
• Pan/Tilt: 0-345°/-10-100°, 1024 preset
• Motion / Tampering alarm, Audio Detection
• Micro SD max. 512GB, Microphone / Speaker, With ALARM Light
• Two-way audio, Audio I/O: 1/1, Alarm I/O: 1/1
• Power: DC 12V±25%, PoE (IEEE802.3 at)/18W
• Size: Ø133 x 286 mm - 1,32 kg, IP66
• Universal Bracket Included

pcs.

Specifications

Model No.:

PTZ-6325IQ-X5SWAL

Felbontás:

5 MP

Camera Housing Type:

PTZ

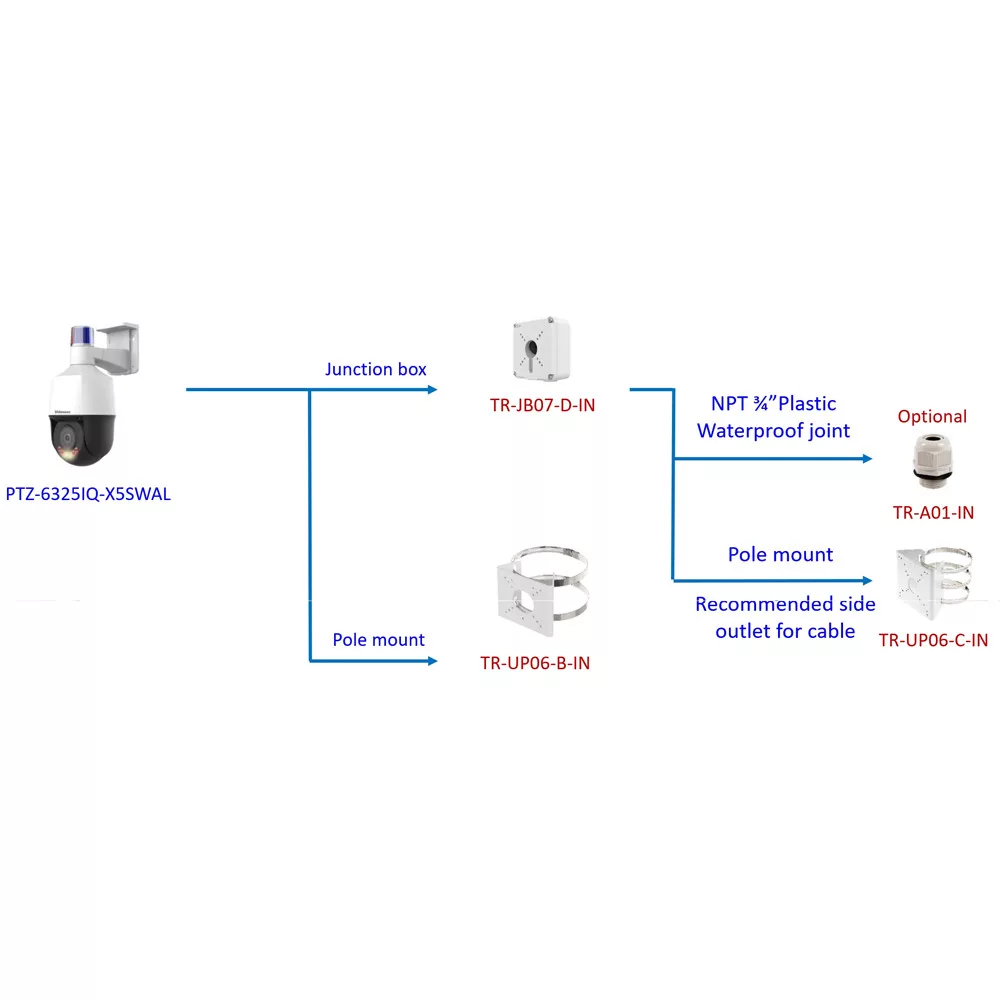

Junction Box:

TR-JB07-D-IN

Camera Console:

beépített/built-in

Image Sensor:

1/2.7" CMOS

Light Sensitivity:

0.005 lux

Supported Resolution:

2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360

Aspect Ratio:

16:9

Video Compression:

H.265, H.264, Smart Encoding: Basic, Smart Encoding: Advanced, MJPEG

Video Stream:

Frame Rate:

25/30 fps, min. 1 fps

Optics Type:

Motoros varifokális/Motorized varifocal

Focus Distance:

2.7 - 13.5 mm

Aperture:

f/1.2

Horizontal Viewing Angle:

30.6°-106.9°

Zoom Range:

WDR:

WDR 120dB

Illumination:

hybrid Fehér/White+IR LED

Auto Switch:

IR-Fehér kapcsolás riasztásra/IR-wLED switching on alarm, Automatic WDR

IR Distance (m):

50 m

White Light Distance (m):

15 m

OSD Field Number:

Privacy Mask:

4 zóna/zones

Corridor Mode:

Nem támogatott/Not supported

IQ Image Analytics:

Advanced IQ analytics based on human, bicycle and vehicle recognition

IQ Alarm:

Intrusion detection, Line crossing detection, Entering area, Leaving area, Auto tracking, Face detection, People flow counting, Crowd density monitoring, Sound event

IQ Level:

LAN Connection:

LAN+PoE

Network protocol:

Private, ONVIF, RTSP

ONVIF Profile:

Profile S, Profile G, Profile T, Profile M

Output:

1x NO/NC relay

Mobile App:

Videosec Control Panel, Videosec Control Panel Pro

PTZ Range:

0°-345°/-10-110°

Pan Speed:

0.1°/s - 50°/s

Tilting Speed:

0.1° - 40°/s

Preset Speed:

50°/s

Patrol:

1 024

Auto Tracking:

Igen/Yes

Home Position:

Igen/Yes

Local Storage:

MicroSD

Max. Micro SD Card Size:

512GB

Auto Network Recovery:

Igen/Yes

Audio input:

Built-in microphone:

Beépített/Built in

Audio output:

Built-in speaker:

Igen/Yes

Alarm input:

1x Riasztási be/Alarm IN

Power Supply:

PoE 802.3af, DC plug

Max. Power Recording:

18W

Surge Protection:

2kV

Power Supply:

12VDC/PoE

Power:

18W

IP Protection:

IP66

Certificates:

Warranty:

2 Years

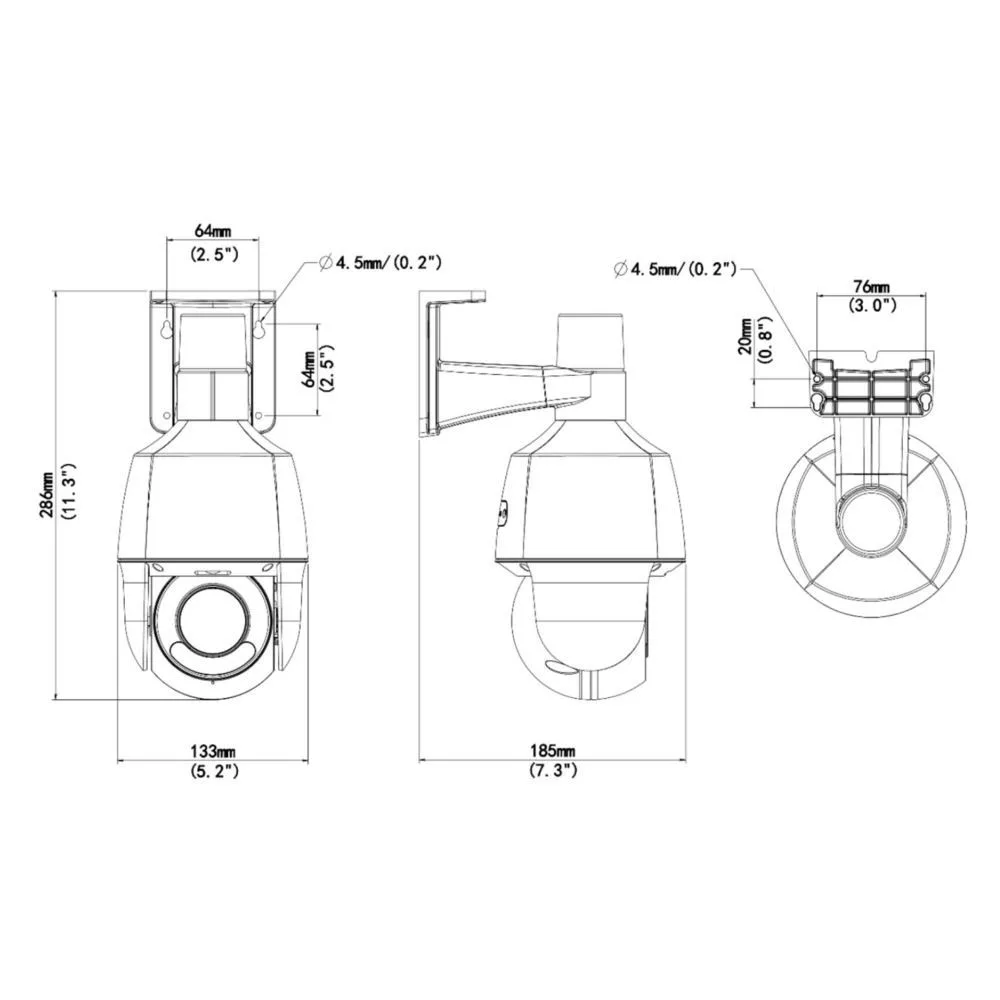

Product Size:

185x133x286mm

Product netto Weight:

1.32 kg

Materials:

Műanyag/Plastic

Box Size:

20.5x15.3x30.6cm

pcs/Package:

Package Volume:

0.00959769 m3

pcs/Shipping Box:

Package EAN Code:

EAN0000088

HS Code:

85 258 900

Origin:

Kína/China

Weight:

1.666 kg/pcs.
