Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
Net Price: 79.17 €
  1. XVR Hybrid Recorders
  1. CCTV Recorders
  2. XVR Hybrid Recorders

Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP

SKU:
VCXR-08Q1D
Register to see the prices and offers tailored for you in our webshop!
Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
Videosec XVR-301-08Q+4 Hybrid Analog+IP Recorder 8+4cs. 1x HDD Max. Res. 8MP
In stock
Net Price: 79.17 €
MODEL: XVR-301-08Q+4
• Hybrid: 8Ch analog + 4Ch IP XVR, LAN 1xRJ45/100M
• 8x BNC Video IN: AHD, TVI, CVI, CVBS + 4x IP
• Camera resolution 1/2/3/4/5/8MP
• Playback/Decode: 8x 8MP Lite@8fps
• 1xSATA, RJ45, 2xUSB, audio, alarm 4in/1out
• 4K-HDMI + VGA(1080p) + CVBS output
• Audio IN/OUT; 1/1Ch, Alarm IN/OUT: 4/1Ch, RS-485
• Input Bandwidth: 40Mbps, H265/H264,
• Output Bandwidth: 64Mbps
• IQ IP Analytics: Intrusion, Cross line, Audio event
• IQ Analog Analytics: 2x Intrusion or 8x IQ motion
• Power supply: 12VDC/24W included
• Size: 260x226x47mm, 1.1kg
Quantity discount:
4  pcs.
5
75.21 €/pcs.
pcs.
Bundle Offers
  • Specifications
  • Download
  • Related products
  • Accessories
Specifications
Model No.:
XVR-301-08Q+4
Resolution (MP):
8 MP
PC/Mac Software:
Guard Station
Video Signal:
TVI CVI AHD CVBS + IP
Supported Resolution:
8MP, 5MP, 4MP, 2MP, 720p, D1
Video Compression:
H.265, H.264, Smart Encoding: Basic, Smart Encoding: Advanced
Video Stream:
Main + Second (analog)
VCA Alarms:
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Face Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Counting, People Flow Counting, Analog IQ motion detection, Analog intrusion detection
VCA Event Search:
Visszajátszásban/In playback
General Alarms:
Mozgásérzékelés/Motion detection
LAN Connection:
1x 10M/100M
Recording Bandwidth:
40 Mbps
Output bandwidth:
64 Mbps
Channel Number:
8+4
Max. Camera Resolution:
8MP
ONVIF Profile:
Profile S, Profile G, Profile T
Decoding Capacity:
8
Video Output:
1x HDMI (4K), 1x VGA (1080p), 1x CVBS (D1)
Input signal:
8x CVBS, AHD, CVI, TVI, 1x vonali/line audio, 1x RS485
Output signal:
1x vonali/line audio, CVBS
Input:
4x NO/NC relay
Output:
1x NO/NC relay
Mobile App:
Videosec Control Panel, Videosec Control Panel Pro
Control Interface:
LAN
Number of HDDs:
1x HDD
Audio input:
1
Audio output:
1
Alarm input:
4x Riasztási be/Alarm IN
Relay output:
1x Riasztási ki/Alarm OUT
USB Ports:
2x USB2
HDD Size (TB/pcs):
16
Video input:
8xBNC+4xIP
Power Supply:
DC plug
Max. Power Recording:
18W
Power Supply:
12VDC
Energy Consumption:
18W
IP Protection:
IP20
Certificates:
CE
Warranty:
2 Years

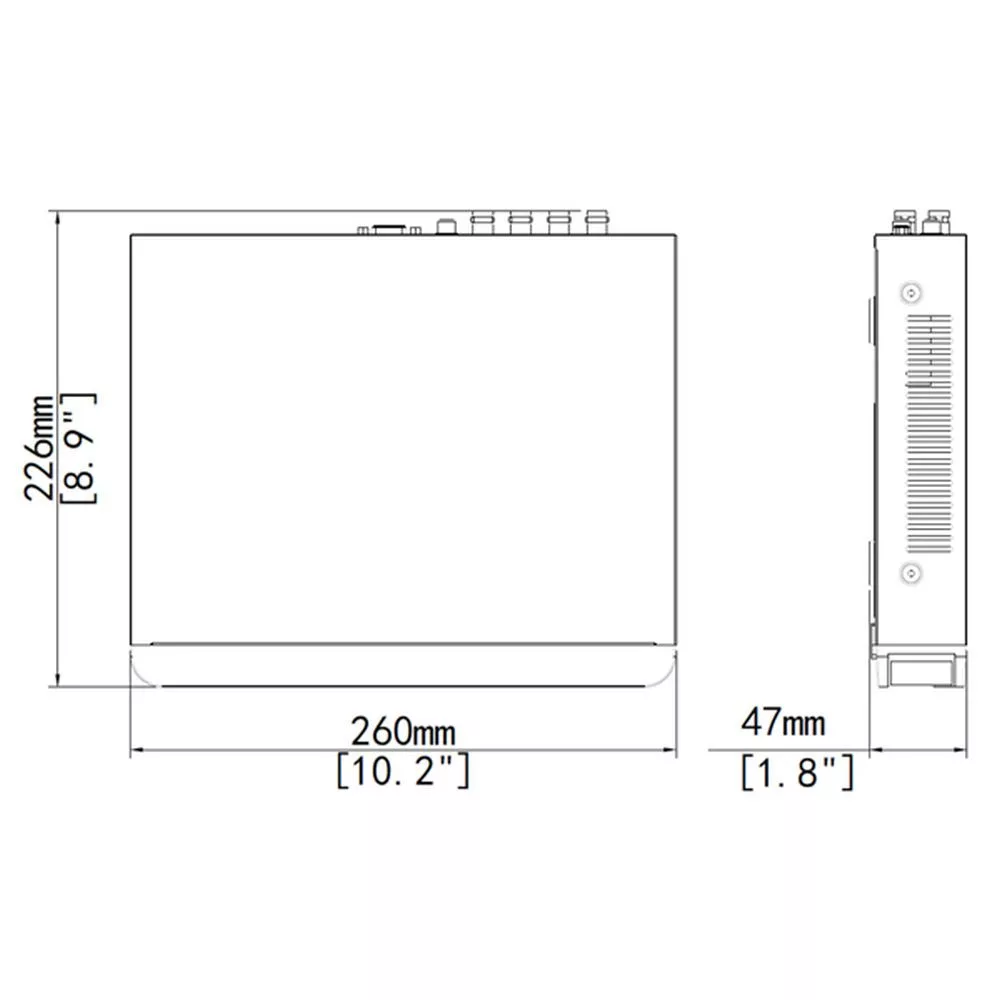

Product Size:
226x260x47mm
Product Weight:
1.1 kg
Materials:
Fém/Metál
Box Size:
7.5x27x40cm
pcs/Package:
1
Package Net Weight:
1.265 kg
Package Gross Weight:
1.3915 kg
Package Volume:
0.0081 m3
pcs/Shipping Box:
10
Package EAN Code:
EAN0000174
HS Code:
8 521 900 090
Origin:
Kína/China
Felbontás:
8 MP
Download
↓ Adatlap ↓
PDF
↓ Gyors útmutató ↓
PDF
↓ CE Minősítés/Certificate ↓
PDF
↓ Datasheet ↓
PDF
↓ User manual ↓
PDF
↓ Guard Tools PC Software ↓
↓ Guard Station PC software WIN/MAC ↓
↓ Firmware ↓
